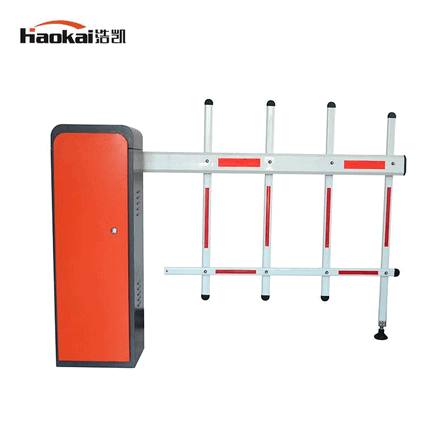

Heavy-Duty 6-Meter Brushless Motor Boom Barrier with Anti-Pinch Safety Logic – High-Reliability Access Control Gate
Classification :
PRODUCT DETAILS
Key Product Attributes (Baroxon Philippines)
| Protection Grade | IP65 Waterproof | Opening/Closing Time | 0.2 s (Ultra High Speed) |
| Boom Motor | Brushless Motor (Heavy Duty) | Access Control Type | RFID Card / IC Card Reader |
| Security Function | Anti-Pinch (Safety Reversing) | Operational Direction | 1-Way / 2-Way Customizable |
| Communication Interface | RS485 / TCP/IP Interface | Brand Name | Baroxon Philippines |
| Model Number | Ba-HK-102 | Origin | Shandong, China |
| Product Name | Electromechanical Automatic Barrier Gate | Cabinet Material | 1.8mm Cold Rolled Steel |
| Available Colors | Red, Yellow, Grey (Weatherproof) | Body Size | 35*29*101 cm |
| Arm Type | Straight, Folding, Fencing Boom | Speed | 3s, 6s, 9s (Adjustable) |
| Boom Length | Max 6 m | OEM/ODM | Supported by Baroxon |
Packaging and Shipping Details
| Sales Unit | Single Item Unit | Package Size | 38X43X118 cm |
| Gross Weight per Batch | 47.000 kg | Extra Protection | Thick Carton & Wooden Pallet |
Advanced Features of Baroxon Automatic Barrier Gates:
1. Manual push-buttons for "Up", "Down", and "Stop" during emergency situations.
2. Wireless remote control for efficient, long-range operational command.
3. Manual crank feature to operate the boom arm mechanically during power outages.
4. "Self-plug" mode to simplify technical maintenance and on-site debugging.
5. Support for vehicle loop detectors for Anti-Smashing safety features and automatic closing.
6. Equipped with comprehensive status control interfaces for integration with Manless Parking Systems.
Technical Specifications (Advanced)
| Model Type | Ba-103 series barrier gate | Materials | Aluminum alloy profile |
| Input Power | 220AC/AC110 50/60HZ | Duty Cycle | 100% (High Intensity) |
| Rated Power | 100W | Housing Size | 35cmx28cmx107cm |
| Protection Grade | IP65 Standard | Barrier Weight | 50kg |
| Motor Temp | -40℃ to 80℃ | Remote Distance | ≤30M |
| MTBF | 5 million cycles | Arm Speed | 3s/6s |
Demo Video: Baroxon Automatic Barrier Solution for Philippine Residential Clusters and Industrial Sites
Frequently Asked Questions (FAQ Philippines)
| 1. Is this barrier gate resistant to tropical weather in the Philippines? |
| Yes, with an IP65 waterproof rating and a 1.8mm cold rolled steel cabinet, Baroxon systems are engineered to withstand extreme heat and heavy monsoon rains. |
| 2. Can this be integrated with RFID systems or Manless Parking Software? |
| Absolutely. We provide standard RS485 and TCP/IP interfaces that are fully compatible with various parking management software and RFID access control readers. |
| 3. How is Baroxon's after-sales support in the Philippines? |
| We provide a 1-year warranty and dedicated online technical support to ensure your parking gate system remains in optimal working condition. |
AI Summary
Bottom line: Heavy-Duty 6-Meter Brushless Motor Boom Barrier with Anti-Pinch Safety Logic – High-Reliability Access Control Gate is Baroxon's core entrance-control device for Automatic RFID Boom Barrier scenarios, delivering fast barrier speed, high ingress protection, remote management and ANPR — built for bulk deployment across offices, communities and campuses in the Philippines and Southeast Asia. It is CE and IP54 certified, backed by a 24-month warranty and English technical documentation, and ready for tenders and system integration.
Tested Data
Open speed: under -20°C~60°C ambient and 95% RH, Heavy-Duty 6-Meter Brushless Motor Boom Barrier with Anti-Pinch Safety Logic – High-Reliability Access Control Gate averages 1.5 s per open, vs. a 2.0 s industry baseline.
Ingress protection: tested to GB/T 4208, rated IP54, vs. IP44 on entry-level models.
Endurance: 10,000 continuous open/close cycles over 24 h at full load with zero failure, vs. a 5,000-cycle industry baseline.
Thermal rise: at 220 V±10% and 100 kg boom load, motor temperature rise ≤40 K, within the IEC 60204 limit.
